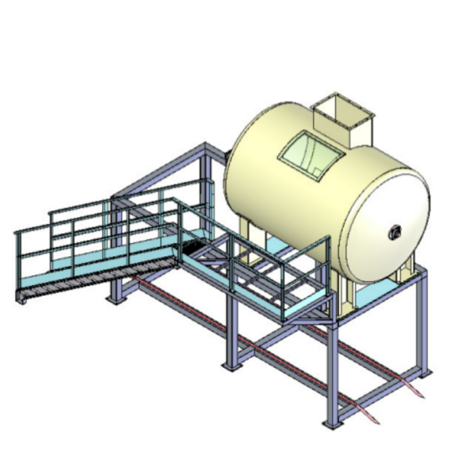

Machine consists of a worm screw kneader mixer with evacuating dome suspended upon a steel frame; the loading of big tank-container can be manually, semi automatically or automatically done. The mixer filling is controlled by a weighing system. The loading cells record the quantity poured out into the mixer and stop automatically the reject load when the weight set for the production is reached. The spraying resin head apply the liquid quantity necessary for the grinden material aggregation into the mixer while it turns for 15’ depending from the quantity set in recipe. Then a second spray gun adds the catalyst + water solution, always with continuous mixing, in order to activate the polymerization; also in this case with setting in the suitable recipe. After 10’ of mixer rotation, an acoustic and visual signal will advise the operation that will open the door to pour the content of the mixer into the underlying box. I leave hereby attached the leaf let of machine complete with technical explanation of system.
More information: MR-C01 .pdf
